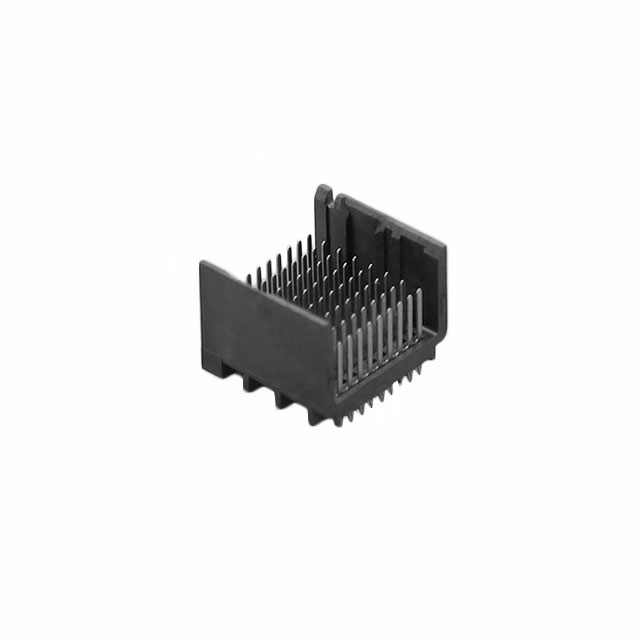

0761651808
Molex Impact Backplane Connector System series identifier Specific configuration within the 76165 series, identifying a 72 Connector Header, Male Pins Through Hole Black Impact
Part number dissection
—
76165Molex Impact Backplane Connector System series identifier
1808Specific configuration within the 76165 series, identifying a 72 Connector Header, Male Pins Through Hole Black Impact
Specifications
Base codeMolex Impact Backplane Connector System series identifier
Finish / variantSpecific configuration within the 76165 series, identifying a 72 Connector Header, Male Pins Through Hole Black Impact
Connector Usage-
Connector TypeHeader, Male Pins
Connector StyleImpact
Number of Positions72
Number of Positions LoadedAll
Pitch0.053" (1.35mm)
Number of Rows9
Number of Columns8
Mounting TypeThrough Hole
TerminationPress-Fit
Availability
SupplyVerified supply chain on file
Lead timeQuoted on request
TraceabilityFull documentation with every shipment
