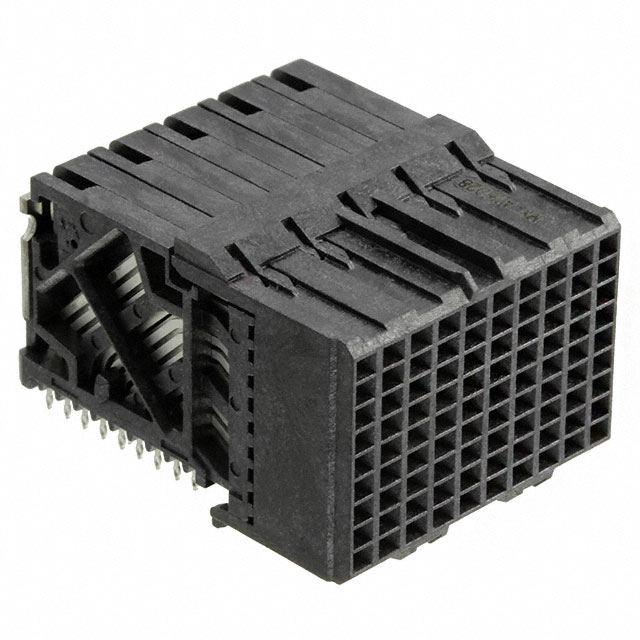

0761701020
Molex Impact™ 90-position, 9-row, 10-column, board edge, through-hole, right-angle connector receptacle with female sockets, press-fit termination, and a typical contact layout of 30 differential pairs. Specifies the contact finish as gold with a thickness of 30.0µin (0.76µm), and the color as black.
Part number dissection
—
076170Molex Impact™ 90-position, 9-row, 10-column, board edge, through-hole, right-angle connector receptacle with female sockets, press-fit termination, and a typical contact layout of 30 differential pairs.
1020Specifies the contact finish as gold with a thickness of 30.0µin (0.76µm), and the color as black.
Specifications
Base codeMolex Impact™ 90-position, 9-row, 10-column, board edge, through-hole, right-angle connector receptacle with female sockets, press-fit termination, and a typical contact layout of 30 differential pairs.
Finish / variantSpecifies the contact finish as gold with a thickness of 30.0µin (0.76µm), and the color as black.
Connector Usage-
Connector TypeReceptacle, Female Sockets
Connector StyleImpact
Number of Positions90
Number of Positions LoadedAll
Pitch-
Number of Rows9
Number of Columns10
Mounting TypeBoard Edge, Through Hole, Right Angle
TerminationPress-Fit
Acceptable alternates
0761703120Same 90 positions, 9 rows, right-angle, press-fit termination, and gold contact plating as the original part, indicating a variation in plating thickness or other minor feature while maintaining core dimensions.
Confirm acceptability against your drawing before ordering.
