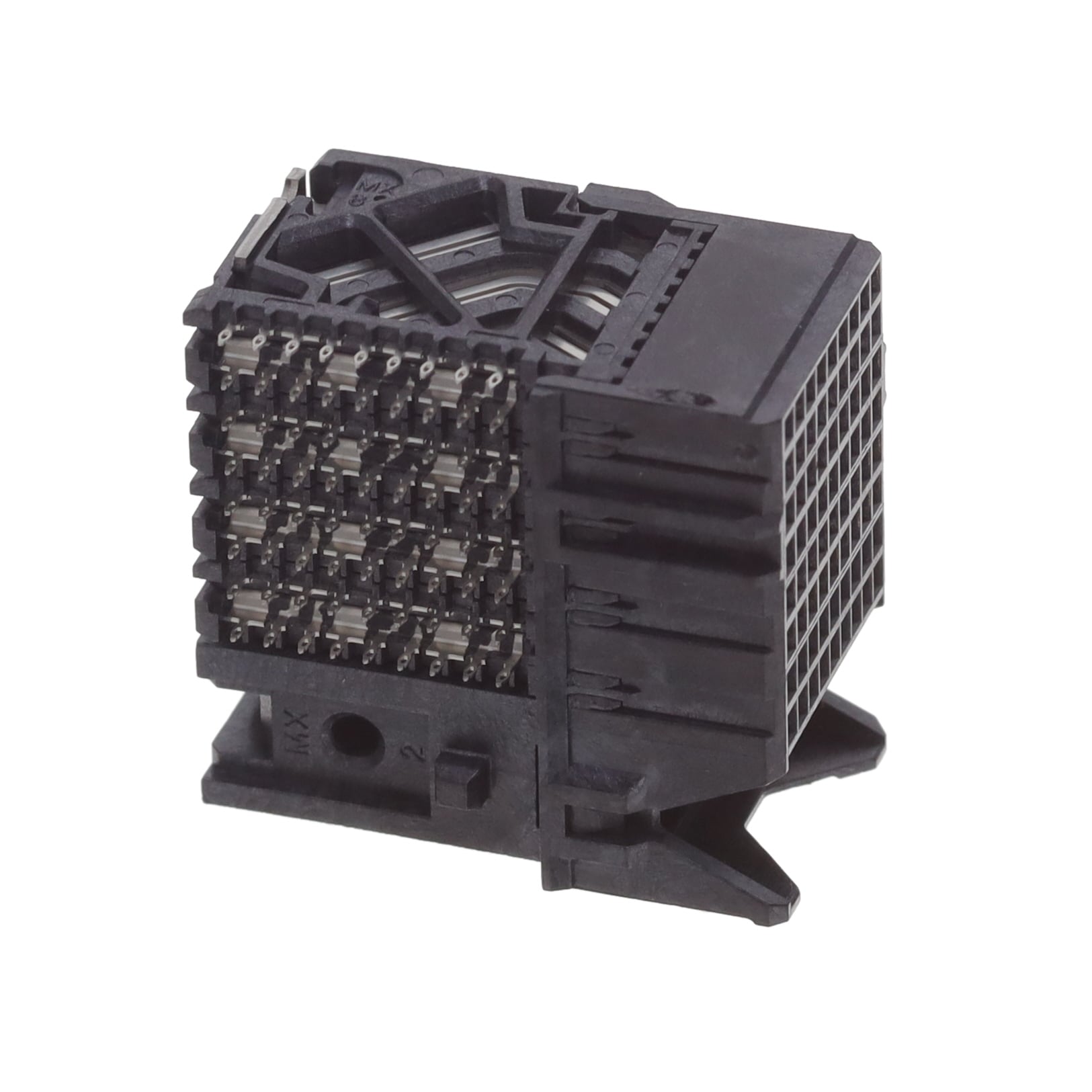

0761705038
Identifies the Molex Impact 100 Ohm 3 Pair Right-Angle Daughtercard Receptacle series. Specifies the exact configuration within the 76170 series, including features like right-guided, 8 columns, 72 circuits, plated through hole dimension 0.39mm, and lead-free status. This is a leading zero, often part of Molex's internal numbering system or a full part number representation.
Part number dissection
0This is a leading zero, often part of Molex's internal numbering system or a full part number representation.
76170Identifies the Molex Impact 100 Ohm 3 Pair Right-Angle Daughtercard Receptacle series.
5038Specifies the exact configuration within the 76170 series, including features like right-guided, 8 columns, 72 circuits, plated through hole dimension 0.39mm, and lead-free status.
Specifications
Base codeIdentifies the Molex Impact 100 Ohm 3 Pair Right-Angle Daughtercard Receptacle series.
Finish / variantSpecifies the exact configuration within the 76170 series, including features like right-guided, 8 columns, 72 circuits, plated through hole dimension 0.39mm, and lead-free status.
Connector Usage-
Connector TypeReceptacle, Female Sockets
Connector StyleImpact, Guide Right
Number of Positions72
Number of Positions LoadedAll
Pitch0.053" (1.35mm)
Number of Rows9
Number of Columns8
Mounting TypeBoard Edge, Through Hole, Right Angle
TerminationPress-Fit
Acceptable alternates
76170-3038Same dimensions and specifications (8 columns, 72 circuits, 0.39mm PTH, lead-free) but with left guidance instead of right guidance.
Confirm acceptability against your drawing before ordering.
