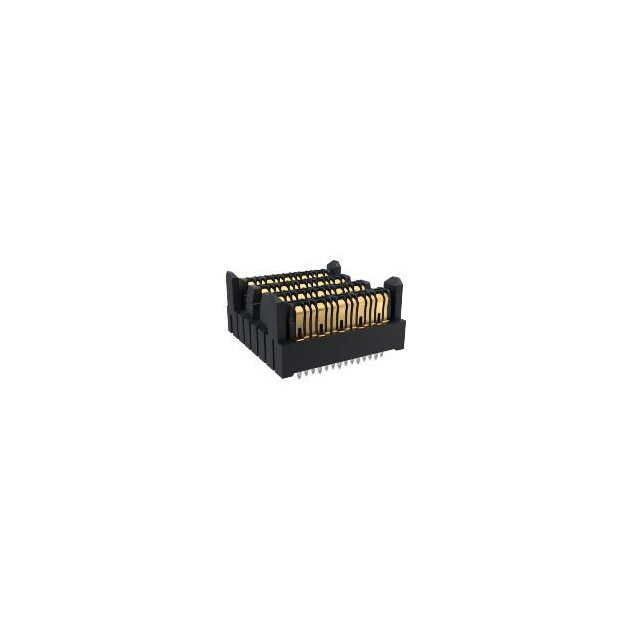

10124752-101LF
This base code identifies an Amphenol ExaMAX® 56Gb/s High-Speed Backplane Connector, specifically a 6-pair, 8-column, 160-position vertical header with 92 Ohm impedance and no guide pin. The '-LF' portion of the suffix indicates that the part is Lead-Free and RoHS compliant.
Part number dissection
—
10124752This base code identifies an Amphenol ExaMAX® 56Gb/s High-Speed Backplane Connector, specifically a 6-pair, 8-column, 160-position vertical header with 92 Ohm impedance and no guide pin.
-101LFThe '-LF' portion of the suffix indicates that the part is Lead-Free and RoHS compliant.
Specifications
Base codeThis base code identifies an Amphenol ExaMAX® 56Gb/s High-Speed Backplane Connector, specifically a 6-pair, 8-column, 160-position vertical header with 92 Ohm impedance and no guide pin.
Finish / variantThe '-LF' portion of the suffix indicates that the part is Lead-Free and RoHS compliant.
Connector Usage-
Connector TypeHeader, Hermaphroditic Contacts
Connector Style-
Number of Positions160
Number of Positions LoadedAll
Pitch0.079" (2.00mm)
Number of Rows20
Number of Columns8
Mounting TypeThrough Hole
TerminationPress-Fit
Availability
SupplyVerified supply chain on file
Lead timeQuoted on request
TraceabilityFull documentation with every shipment
BTEK sources through registry-verified producers and authorized channels. Certs of conformance travel with the parts.
Get a quote in minutes.
Quantity and target date. BTEK's quoting engine sources, prices and replies by email.
