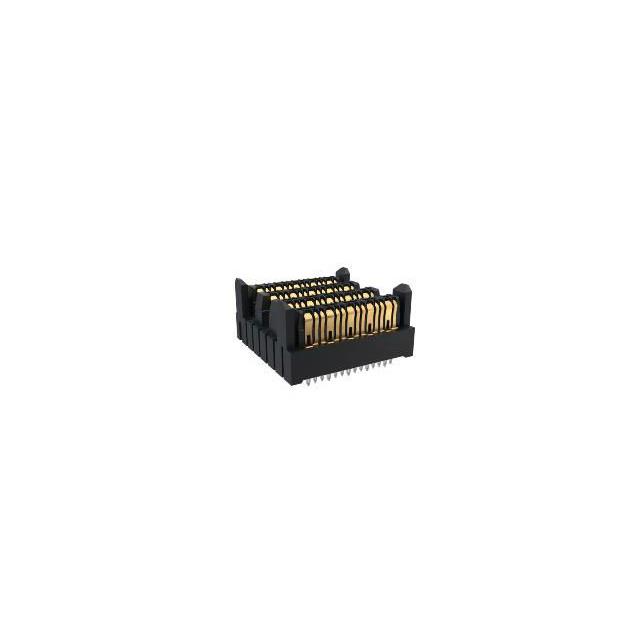

10128349-101LF
ExaMAX® 56Gb/s High Speed Backplane Connector 92Ohm, 3-Pair, 6 column, 66 position, Vertical Header, No Guide Pin. Lead-Free
Part number dissection
—
10128349-101ExaMAX® 56Gb/s High Speed Backplane Connector 92Ohm, 3-Pair, 6 column, 66 position, Vertical Header, No Guide Pin.
LFLead-Free
Specifications
Base codeExaMAX® 56Gb/s High Speed Backplane Connector 92Ohm, 3-Pair, 6 column, 66 position, Vertical Header, No Guide Pin.
Finish / variantLead-Free
Connector Usage-
Connector TypeHeader, Hermaphroditic Contacts
Connector Style-
Number of Positions66
Number of Positions LoadedAll
Pitch0.100" (2.54mm)
Number of Rows11
Number of Columns6
Mounting TypeThrough Hole
TerminationPress-Fit
Acceptable alternates
10128349-12JLFdifferent guide pin configuration (Left Guide Pin vs. No Guide Pin) for the same base connector dimensions and type
Confirm acceptability against your drawing before ordering.
Availability
SupplyVerified supply chain on file
Lead timeQuoted on request
TraceabilityFull documentation with every shipment
BTEK sources through registry-verified producers and authorized channels. Certs of conformance travel with the parts.
