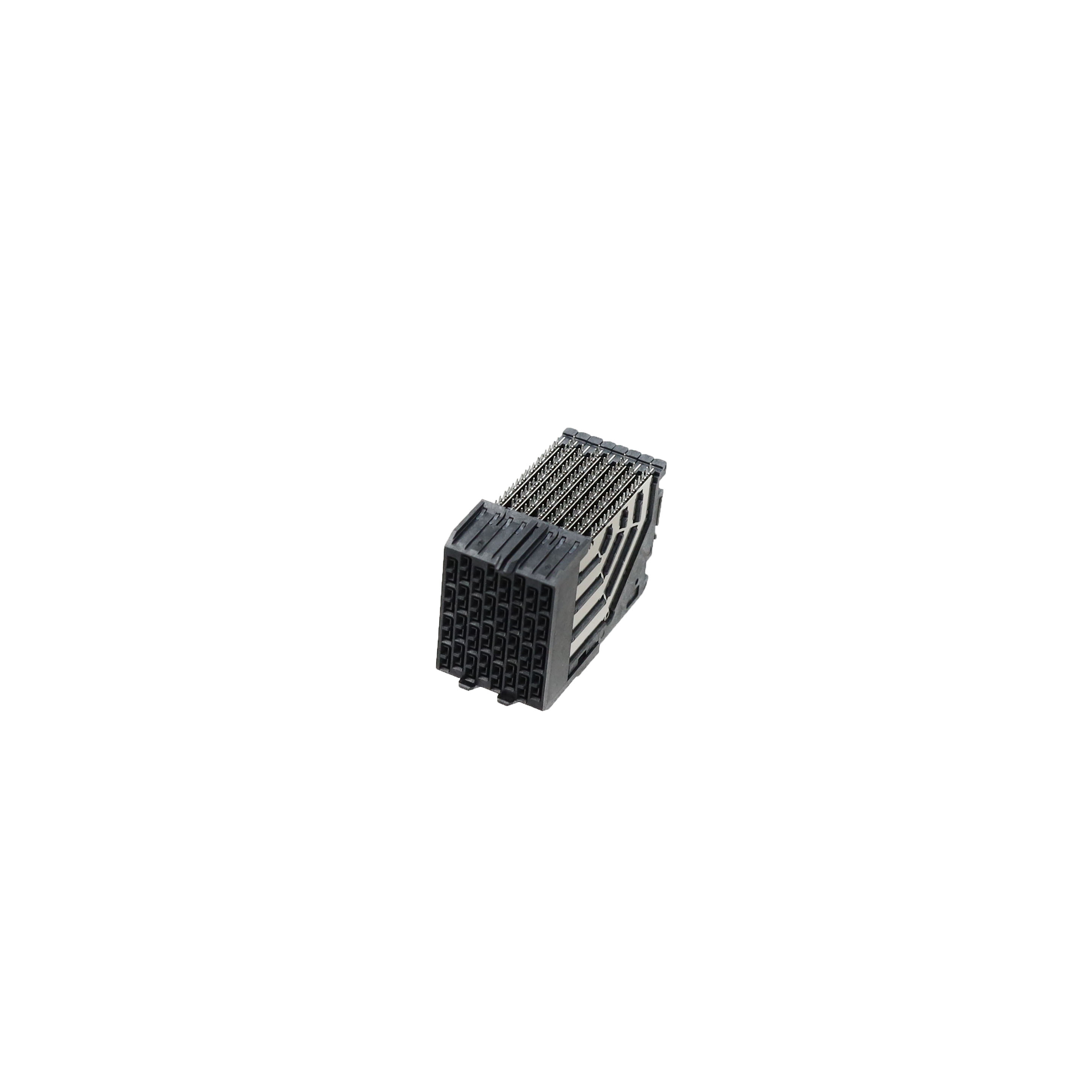

1713201038
Molex Impel series of High Speed / Modular Connectors. 90 Ohm, 4 Pair Right-Angle Daughtercard, 1.90mm Pitch, Unguided, 8 Columns, 64 Circuits, Plated Through Hole Dimension 0.36mm.
Part number dissection
—
171320Molex Impel series of High Speed / Modular Connectors.
103890 Ohm, 4 Pair Right-Angle Daughtercard, 1.90mm Pitch, Unguided, 8 Columns, 64 Circuits, Plated Through Hole Dimension 0.36mm.
Specifications
Base codeMolex Impel series of High Speed / Modular Connectors.
Finish / variant90 Ohm, 4 Pair Right-Angle Daughtercard, 1.90mm Pitch, Unguided, 8 Columns, 64 Circuits, Plated Through Hole Dimension 0.36mm.
Connector UsageCoplanar, Daughtercard
Connector TypeReceptacle, Female Sockets
Connector StyleImpel™
Number of Positions64
Number of Positions LoadedAll
Pitch-
Number of Rows8
Number of Columns8
Mounting TypeThrough Hole, Right Angle
TerminationPress-Fit
Acceptable alternates
1713203038Same 4-pair, 64-circuit, 8-column, 1.90mm pitch, right-angle daughtercard with 0.36mm plated through-hole dimension, but with 'Left Guided' instead of 'Unguided' feature, as documented by Molex and distributors.
Confirm acceptability against your drawing before ordering.
Availability
SupplyVerified supply chain on file
Lead timeQuoted on request
TraceabilityFull documentation with every shipment
BTEK sources through registry-verified producers and authorized channels. Certs of conformance travel with the parts.
