2317416-1
Identifies an OSFP 1x1 Cage Assembly. Specifies a particular variant of the OSFP 1x1 Cage Assembly, described as lightpipe-free low-profile footprint.
Part number dissection
—
2317416Identifies an OSFP 1x1 Cage Assembly.
-1Specifies a particular variant of the OSFP 1x1 Cage Assembly, described as lightpipe-free low-profile footprint.
Specifications
Base codeIdentifies an OSFP 1x1 Cage Assembly.
Finish / variantSpecifies a particular variant of the OSFP 1x1 Cage Assembly, described as lightpipe-free low-profile footprint.
Connector StyleCage
Connector TypeOSFP
Number of Positions-
Mounting TypeThrough Hole, Right Angle
TerminationPress-Fit
FeaturesEMI Shielded
Contact Finish-
Contact Finish Thickness-
Standard Pack Qty14
Datasheet
Source: TE ConnectivityView on manufacturer site ↗
Overview

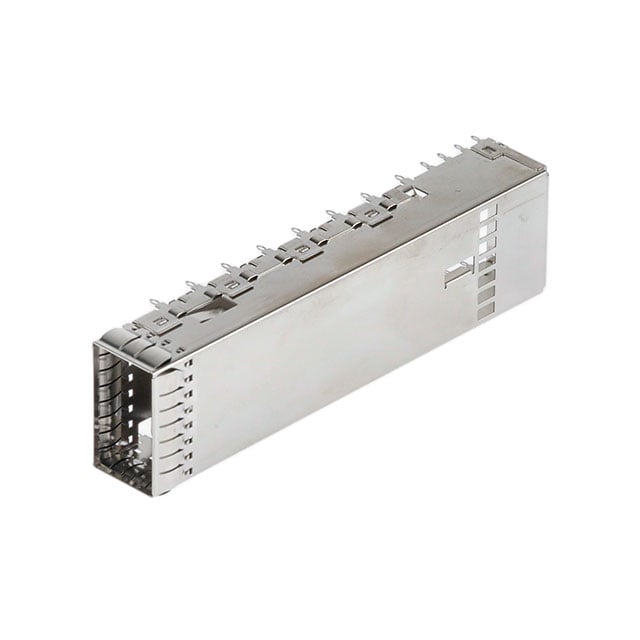

The 2317416-1 is a 1x1 Octal Small Form Factor Pluggable (OSFP) Cage Assembly designed for next-generation data center needs. It supports aggregate data rates up to 800 Gbps and is compatible with 28G NRZ and 56G PAM-4 protocols, with a roadmap to 112G PAM-4. This cage assembly is made of stainless steel, features tuned airflow venting for module cooling and optimal system airflow, and provides traditional EMI containment at the bezel and port opening. It is designed for flat rock PCB assembly and supports single port applications.
Key features
- Designed for up to 112G PAM-4 protocols
- Designed for up to 15W thermal loads with low airflow
- Capable of fitting up to 32 ports in a 1RU switch form factor
- 1 x 1 cage to support single port applications
- Low cost, stainless steel cage with tuned airflow venting supports module cooling and optimal system airflow
- Traditional EMI containment at the bezel and port opening
- Flat rock PCB assembly
Applications
This OSFP cage assembly is suitable for use in Switches, Servers, Routers, and Storage equipment.
Alternates / same series
2338495-11x4 OSFP Cage Assembly
2324869-1OSFP SMT, PDNI Connector Assembly
2324869-2OSFP SMT w/ Holdown, PDNI Connector Assembly
2338495-31x4 OSFP Cage w/ Open Back
1-2338495-11x4 OSFP Cage w/ Grid, 1 LP Per Port
1-2338495-31x4 OSFP Cage w/ Open Back, 1 LP Per Port
2-2338495-11x4 OSFP Cage w/ Grid, 2 LP Per Port
2-2338495-31x4 OSFP Cage w/ Open Back, 2 LP Per Port
4-2338495-11x4 OSFP Cage w/ Grid, 4 LP Per Port
4-2338495-31x4 OSFP Cage w/ Open Back, 4 LP Per Port
2325080-41x4 Lightpipe Assembly, 4 LP Per Port
2325080-51x4 Lightpipe Assembly, 2 LP Per Port
2325080-61x4 Lightpipe Assembly, 1 LP Per Port
2338495-51x4 Cage for Lightpipes
2315853-21x4 OSFP Cage w/ Grid, No EMI Springs
2315853-41x4 OSFP Cage w/ Open Back, No EMI Springs
2317857-2Dust and EMI Plug
2324698-1Dust Plug
2344064-1OSFP SMT Receptacle, PdNi, Au Flash, with Solder washer
2344064-2OSFP SMT Receptacle, PdNi, Au Flash
2344064-3OSFP SMT Receptacle, Au, with Solder washer
2344064-4OSFP SMT Receptacle, Au
