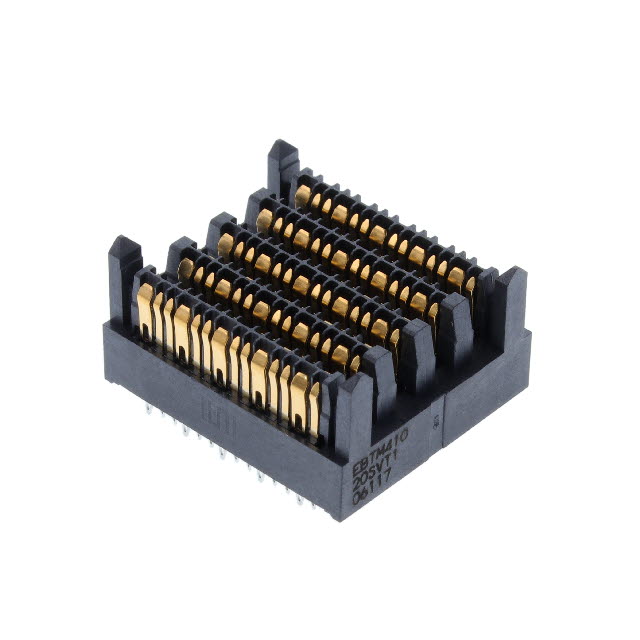

EBTM-4-10-2.0-S-VT-1
4 pairs per column, 10 columns, 2.0mm (.0787") pitch 30μ'' Selective Gold in Contact Area, Matte Tin on Tail plating, Vertical orientation, Standard pin configuration Samtec ExaMAX® 2mm Vertical Header Assembly
Part number dissection
EBTMSamtec ExaMAX® 2mm Vertical Header Assembly
-4-10-2.04 pairs per column, 10 columns, 2.0mm (.0787") pitch
-S-VT-130μ'' Selective Gold in Contact Area, Matte Tin on Tail plating, Vertical orientation, Standard pin configuration
Specifications
Base code4 pairs per column, 10 columns, 2.0mm (.0787") pitch
Finish / variant30μ'' Selective Gold in Contact Area, Matte Tin on Tail plating, Vertical orientation, Standard pin configuration
Connector UsageBackplane
Connector TypeHeader, Male Blades
Connector StyleExaMax®
Number of Positions80
Number of Positions LoadedAll
Pitch-
Number of Rows-
Number of Columns10
Mounting TypeThrough Hole
TerminationPress-Fit
Acceptable alternates
EBTM-4-10-2.0-S-RA-1Different orientation (Right Angle) while maintaining the same base dimensions and plating.
EBTM-4-10-2.0-S-VT-1-LDifferent pin configuration/guidance (Guide Left) while maintaining the same base dimensions, orientation, and plating.
Confirm acceptability against your drawing before ordering.
Availability
SupplyVerified supply chain on file
Lead timeQuoted on request
TraceabilityFull documentation with every shipment
BTEK sources through registry-verified producers and authorized channels. Certs of conformance travel with the parts.
