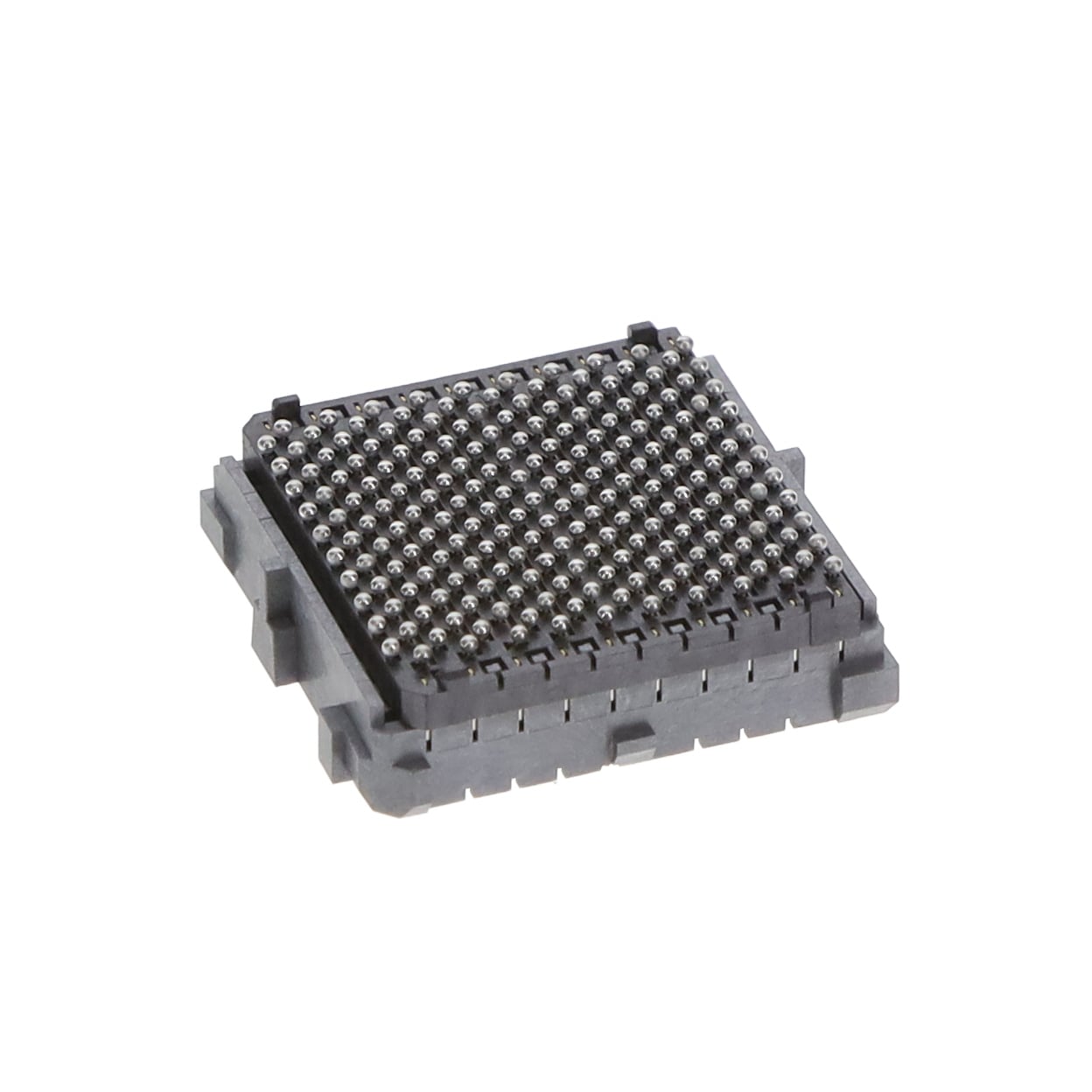

IT5D-100S-BGA(39)
Specifies the connector type as 'D' (likely a receptacle variant) and the number of contacts as 100. Indicates Ball Grid Array (BGA) mounting and a stacking height of 39mm. Identifies the IT5 Series of high-speed BGA mezzanine connectors.
Part number dissection
IT5Identifies the IT5 Series of high-speed BGA mezzanine connectors.
D-100SSpecifies the connector type as 'D' (likely a receptacle variant) and the number of contacts as 100.
-BGA(39)Indicates Ball Grid Array (BGA) mounting and a stacking height of 39mm.
Specifications
Base codeSpecifies the connector type as 'D' (likely a receptacle variant) and the number of contacts as 100.
Finish / variantIndicates Ball Grid Array (BGA) mounting and a stacking height of 39mm.
Connector TypeReceptacle
Number of Positions100
Pitch0.059" (1.50mm)
Mounting TypeSurface Mount
Features-
Contact FinishGold
Contact Finish Thickness30.0µin (0.76µm)
Mated Stacking Heights-
Height Above Board0.236" (6.00mm)
Datasheet
Source: Hirose Electric Co LtdView on manufacturer site ↗
Overview
The IT5D-100S-BGA(39) is a high-speed BGA mezzanine connector from the IT5 Series, capable of 25+ Gbps. It features a unique 3-piece structure and a staggered 1.5mm × 1.75mm ball grid array. This specific part is a Mating Receptacle with 100 contacts, utilizing Pb-free solder and having a gray housing.
Key features
- Unique 3-piece structure for flexibility
- Stacking heights from 14 to 40mm
- Staggered 1.5mm ×1.75mm ball grid array
- Number of Contacts: 100, 200, &300 signals + 110% additional grounds
- Differential, single-ended, and power
- Low mating/extracting forces
- Wide misalignment tolerances for multiple connector use
- Pb-free are available
- Excellent reflow solderability
Alternates / same series
IT5HD-100S-BGA(39)Mating Receptacle (+1mm)
IT5M-100S-BGA(37)Mounting Receptacle
IT5HM-100S-BGA(37)Mounting Receptacle (+1mm)
FAQ
What is the rated current for the IT5D-100S-BGA(39)?
The rated current for the IT5D-100S-BGA(39) is 0.2A/pin.
What is the rated voltage for the IT5D-100S-BGA(39)?
The rated voltage for the IT5D-100S-BGA(39) is 50Vrms.
What is the operating temperature range for the IT5D-100S-BGA(39)?
The operating temperature range for the IT5D-100S-BGA(39) is -55 to +85°C.
What is the maximum contact resistance when mated with IT5##-##P-H(##) at a stacking height of 14 to 16mm?
The maximum contact resistance when mated with IT5##-##P-H(##) at a stacking height of 14 to 16mm is 50mΩ.
What is the maximum contact resistance when mated with IT3##-##P-H(##) at a stacking height of 15 to 24mm?
The maximum contact resistance when mated with IT3##-##P-H(##) at a stacking height of 15 to 24mm is 50mΩ.
Acceptable alternates
IT5HD-100S-BGA(39)Mating Receptacle with +1mm height, same number of positions, BGA mounting, and material/plating specification.
IT5M-100S-BGA(37)Mounting Receptacle, same number of positions, BGA mounting, with a different material/plating specification (37) for mounting receptacles.
IT5HM-100S-BGA(37)Mounting Receptacle with +1mm height, same number of positions, BGA mounting, and material/plating specification (37) for mounting receptacles.
Confirm acceptability against your drawing before ordering.
