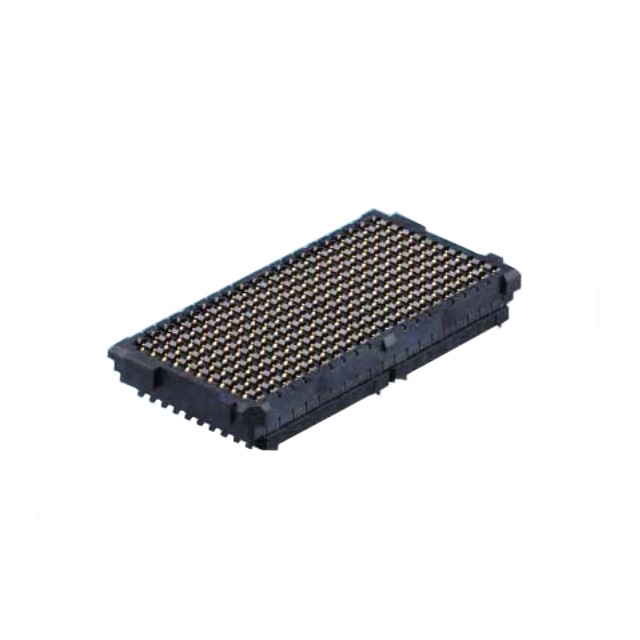

IT5D-200S-BGA(39)
The 'D' indicates a specific connector type or configuration within the IT5 series. '200' specifies the number of contacts (200 signals). 'S' is a standard designator. 'BGA' indicates a Ball Grid Array mounting type. A specific code, likely related to packaging or a particular variant, as seen in the full product number CL0636-1501-0-39 IT5D-200S-BGA(39). Identifies the Hirose IT5 Series of high-speed BGA mezzanine connectors.
Part number dissection
IT5Identifies the Hirose IT5 Series of high-speed BGA mezzanine connectors.
D-200S-BGAThe 'D' indicates a specific connector type or configuration within the IT5 series. '200' specifies the number of contacts (200 signals). 'S' is a standard designator. 'BGA' indicates a Ball Grid Array mounting type.
(39)A specific code, likely related to packaging or a particular variant, as seen in the full product number CL0636-1501-0-39 IT5D-200S-BGA(39).
Specifications
Base codeThe 'D' indicates a specific connector type or configuration within the IT5 series. '200' specifies the number of contacts (200 signals). 'S' is a standard designator. 'BGA' indicates a Ball Grid Array mounting type.
Finish / variantA specific code, likely related to packaging or a particular variant, as seen in the full product number CL0636-1501-0-39 IT5D-200S-BGA(39).
Connector TypeReceptacle
Number of Positions200
Pitch0.059" (1.50mm)
Mounting TypeSurface Mount
FeaturesLocking
Contact FinishGold
Contact Finish Thickness30.0µin (0.76µm)
Mated Stacking Heights39mm
Height Above Board-
PackagingTray
Datasheet
Source: Hirose Electric Co LtdView on manufacturer site ↗
Overview
The IT5D-200S-BGA(39) is a high-speed BGA mezzanine connector from the IT5 Series, capable of 25+ Gbps. It is a mating receptacle type with 200 positions, utilizing a Ball Grid Array. The part features a gray housing, Pb-free solder (Sn (96.5) –Ag (3.0) –Cu (0.5)), and contact area plating of Au (0.76μm) + Ni (1.5μm).
Key features
- Unique 3-piece structure for flexibility
- Stacking heights from 14 to 40mm
- Staggered 1.5mm ×1.75mm ball grid array
- Number of Contacts: 100, 200, &300 signals + 110% additional grounds
- Differential, single-ended, and power
- Low mating/extracting forces
- Wide misalignment tolerances for multiple connector use
- Pb-free are available
- Excellent reflow solderability
Alternates / same series
IT5D-100S-BGA(39)Mating Receptacle, 100 signals/110 grounds
IT5HD-100S-BGA(39)Mating Receptacle, 100 signals/110 grounds, +1mm connector configuration
IT5M-100S-BGA(37)Mounting Receptacle, 100 signals/110 grounds
IT5HM-100S-BGA(37)Mounting Receptacle, 100 signals/110 grounds, +1mm connector configuration
IT5HD-200S-BGA(39)Mating Receptacle, 200 signals/220 grounds, +1mm connector configuration
IT5M-200S-BGA(37)Mounting Receptacle, 200 signals/220 grounds
IT5HM-200S-BGA(37)Mounting Receptacle, 200 signals/220 grounds, +1mm connector configuration
IT5D-300S-BGA(39)Mating Receptacle, 300 signals/330 grounds
IT5HD-300S-BGA(39)Mating Receptacle, 300 signals/330 grounds, +1mm connector configuration
IT5M-300S-BGA(37)Mounting Receptacle, 300 signals/330 grounds
IT5HM-300S-BGA(37)Mounting Receptacle, 300 signals/330 grounds, +1mm connector configuration
Acceptable alternates
IT5D-200S-BGA(37)Different material and plating specification (housing color black instead of gray) for the same mating receptacle connector.
Confirm acceptability against your drawing before ordering.
