M83513/02-BN

Name: M83513/02-BN
SKU: M83513/02-BN
Availability: InStock

Identifies a Micro-D socket (receptacle) connector with solder cup termination and 15 contacts. Specifies an electroless nickel plated aluminum shell finish. Military specification for polarized microminiature rectangular electrical connectors, controlling dimensions, materials, performance, and testing.

Request a quote for this part Add to BOM upload

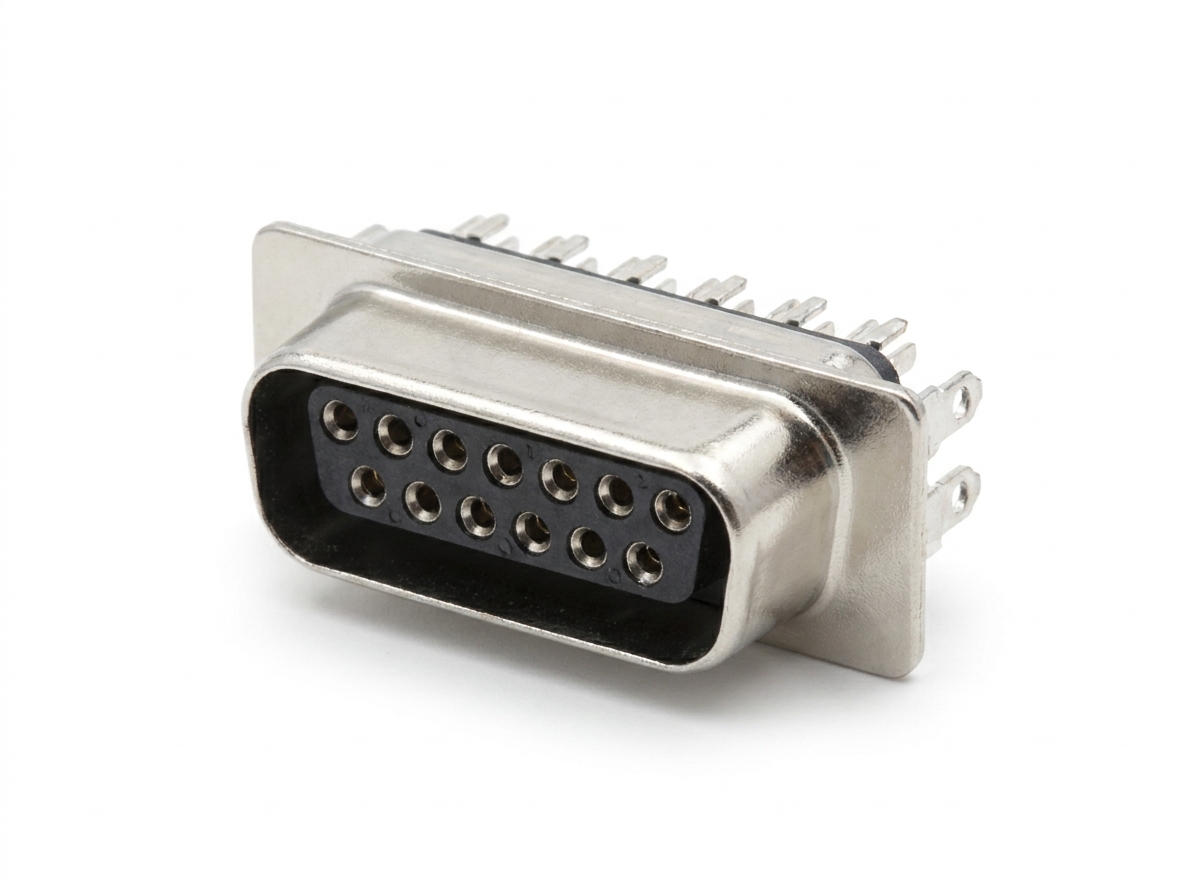

Reference image — MIL-DTL-83513 Micro-D connector receptacle, not the specific part

REFERENCE ONLY

Part number dissection

M83513Military specification for polarized microminiature rectangular electrical connectors, controlling dimensions, materials, performance, and testing.

/02-BIdentifies a Micro-D socket (receptacle) connector with solder cup termination and 15 contacts.

NSpecifies an electroless nickel plated aluminum shell finish.

Specifications

Base codeIdentifies a Micro-D socket (receptacle) connector with solder cup termination and 15 contacts.

Finish / variantSpecifies an electroless nickel plated aluminum shell finish.

PackagingBulk

Standard Pack Qty5

Acceptable alternates

M83513/02-BCdifferent shell finish (Yellow Chromate Plated Cadmium)

Confirm acceptability against your drawing before ordering.

Availability

SupplyVerified supply chain on file

Lead timeQuoted on request

TraceabilityFull documentation with every shipment

BTEK sources through registry-verified producers and authorized channels. Certs of conformance travel with the parts.
